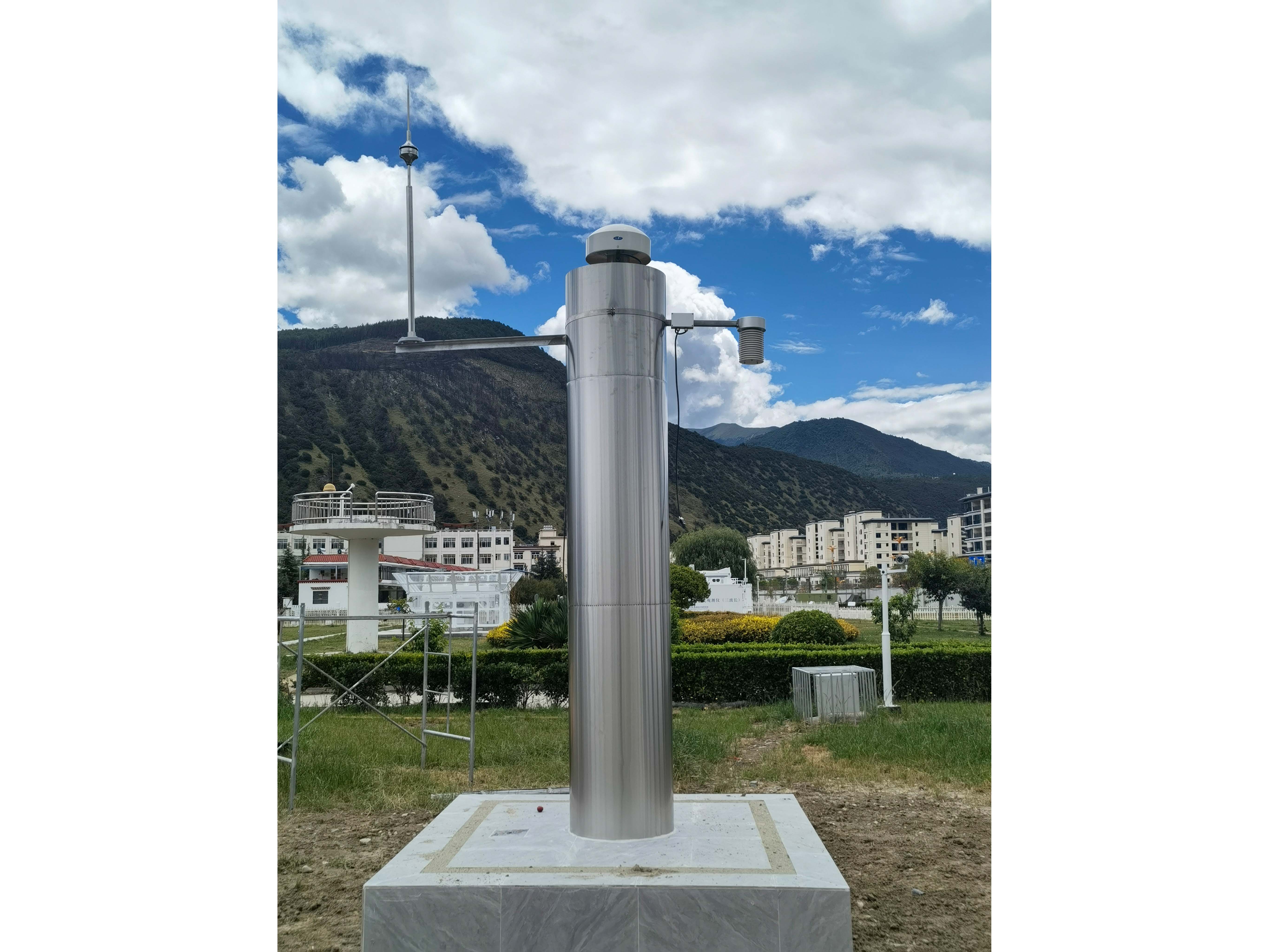

Ground-Based Navigation Satellite Integrated Sounding System for Water Vapor and Ionosphere

summary

Home · Product Center - GNSS/MET
Introduction to progressiveness Application Cases Technical Specifications

Introduction to progressiveness

雷达体制

采用一维数字有源相控阵、全固态、收发全数字全相参、脉冲多普勒，双偏振。

数据质量

波束偏离法向天线发射和接收波束宽度、天线增益指向一致性等影响雷达探测精度和数据质量的参数发生变化通过标定和订正，降低对数据质量影响。

扫描策略

窄发窄收、宽发窄收、单波束、多波束、分辨率脉压比等参数设置和波束复用等技术如何使用，数据格式如何优化才能发挥相控阵雷达的作用。

应用案例

天津智慧气象建设工程-大城市灾害性天气观测子系统项目中，基于S波段业务雷达数据进行大小雷达组网融合，指挥X波段相控阵雷达进行协同工作;

X波段相控阵雷达基于组网融合对天气过程的分析，在识别出天气类型后，协同使用针对性的观测模式，以更好地服务强对流的监测和预警服务。

Technical Specifications

ECHNICAL DATA

Tracking   signal

BDS, GPS,   GLONASS and Galileo navigation satellite system signals, with BDS3 PPP-B2b   data receiving and processing functions

Observation   function

Observation data include dual-frequency ranging   code, dual-frequency carrier phase value and four system satellite   broadcasting ephemeris BDS/GPS/GLONASS/Galileo, etc.

ZTD and PWV   will generate hourly and minute-level products in real time

Detect the satellite   ionospheric TEC、ROTI and ionospheric scintillations to   generate hourly products and minute-level products in real time

The total   electron content (), ionospheric perturbation (ROTI) and ionospheric   scintillation were detected, and hourly and minute level products were   generated in real time

Power   consumption

≤8W

Data update   rate

20HZ

Communication



2 RS232 or 422；1 10/100M Ethernet interface;；

--Serial   ports can be used for both local CMR or RTCM correction transmissions

--One port with RJ45 connector for   10Base-T/100Base-T network;

---All   functions are performed simultaneously through one single IP address,   including web user interface access, FTP file transfer, and raw data   streaming
